DNA Fingerprinting Explained: Principle, Steps, Diagrams, and Applications

DNA Fingerprinting is a modern genetic identification technique used to distinguish one individual from another by studying specific variable regions in DNA. It is one of the most important applications of molecular biology and biotechnology, widely used in forensic science, paternity testing, criminal investigation, disaster victim identification, and population genetics.

Since every person, except identical twins, has a unique DNA pattern, DNA fingerprinting has become a highly reliable scientific method for personal identification. The technique is based on the fact that although human DNA is almost identical across individuals, certain regions show variations called polymorphisms, which create a unique DNA profile for each person.

DNA Fingerprinting

DNA fingerprinting, also called DNA profiling, is a technique used to identify an individual by analysing unique patterns in their DNA. It compares selected regions of DNA that vary from person to person rather than sequencing the entire genome.

This method became a landmark development in biology and forensic science after it was introduced by Sir Alec Jeffreys in 1984. In India, major contributions to the development and use of DNA fingerprinting were made by Dr V. K. Kashyap and Dr Lalji Singh.

DNA fingerprinting is used in many real-life situations, such as:

• identifying criminals from biological evidence

• resolving paternity and family disputes

• solving immigration-related identity issues

• identifying dead bodies in accidents or disasters

• studying genetic diversity among populations

Why is DNA Fingerprinting Needed?

Human beings share nearly 99.9% of their DNA, but around 0.1% of DNA differs among individuals. These differences are enough to make each person genetically unique.

If scientists had to compare the entire DNA sequence of two people every time, it would be extremely difficult, time-consuming, and expensive. DNA fingerprinting solves this problem by focusing only on specific highly variable repetitive DNA regions, making identification much faster and more practical.

Principle of DNA Fingerprinting

The principle of DNA fingerprinting is based on the presence of DNA polymorphisms in certain non-coding repetitive regions.

Key idea

Although most of the DNA sequence in humans is similar, some DNA regions differ in:

• sequence

• number of repeats

• fragment length

These variable regions are inherited from parents and remain the same in all tissues of the same person. Because of this, DNA obtained from blood, saliva, bone, skin, sperm, hair follicles, and other tissues can be used for identification.

Why Does it Work?

DNA fingerprinting works because:

• Each individual has a unique pattern of repetitive DNA

• These polymorphisms are inherited

• The same DNA pattern is found in all cells of a person

• The probability of two unrelated people having the same DNA fingerprint is extremely low

DNA Polymorphism

DNA polymorphism refers to variation in the DNA sequence between individuals. These differences may arise from changes in the number of repeated DNA units or in specific nucleotide sequences.

DNA polymorphism forms the basis of:

• DNA fingerprinting

• genetic mapping

• population studies

• paternity testing

• forensic identification

Because polymorphisms are inherited, they help trace biological relationships between individuals.

Repetitive DNA

DNA fingerprinting primarily examines specific DNA regions called repetitive DNA.

These are regions where a short DNA sequence is repeated many times. Repetitive DNA does not usually code for proteins, but it constitutes a significant portion of the human genome and exhibits high variation among individuals.

Important Features of Repetitive DNA

These repetitive sequences can be separated from the bulk genomic DNA and studied for variation. Since the amount and arrangement of repeats differ from one individual to another, they produce distinct DNA patterns.

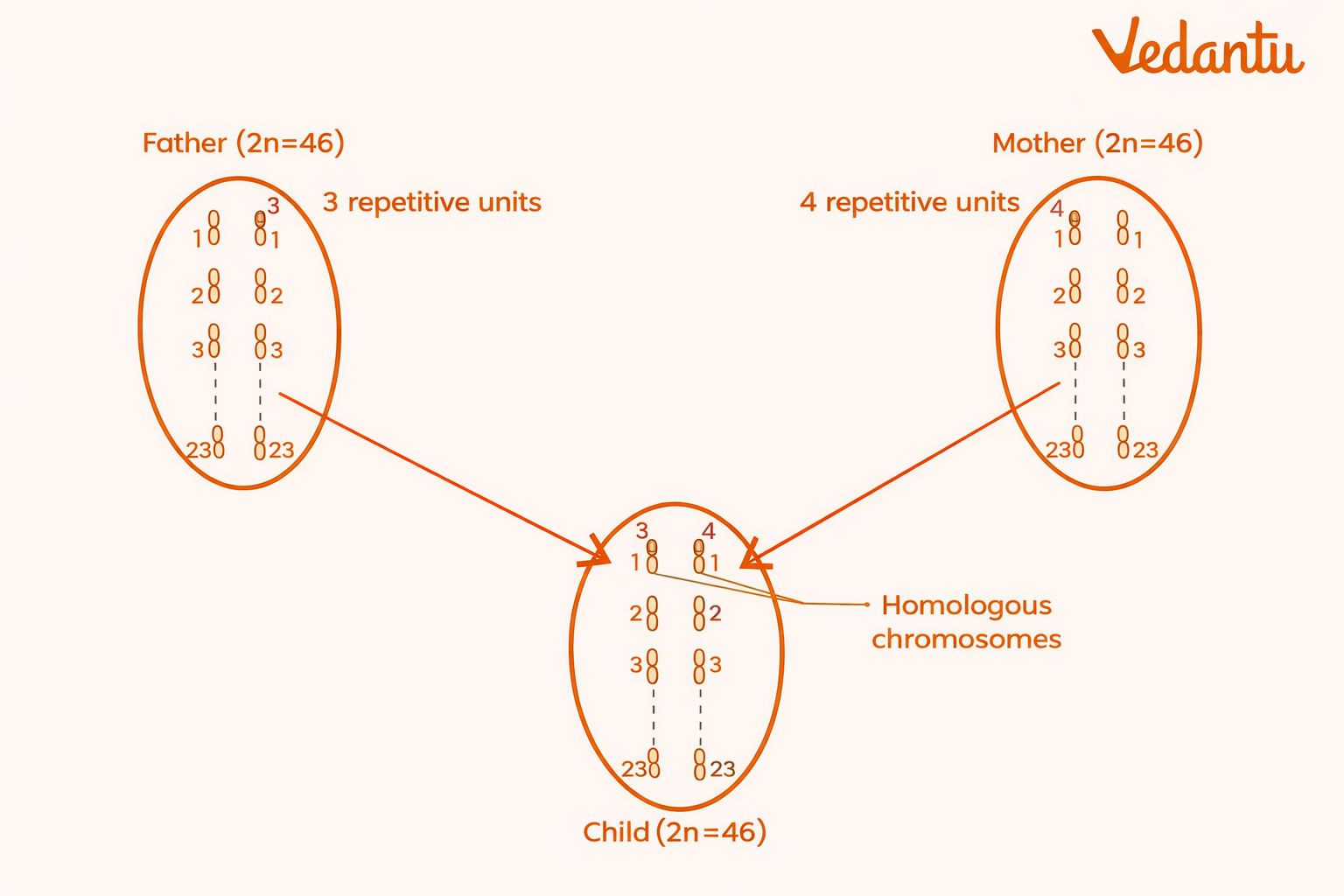

Why is Repetitive DNA Important in DNA Fingerprinting?

Repetitive DNA is highly useful because:

• It varies greatly in a population

• It can differ even between homologous chromosomes of the same individual

• It remains the same in all tissues of one person

• It is inherited from parents to children

This makes it ideal for forensic identification and paternity analysis. For example, DNA taken from blood at a crime scene can be matched with DNA from a suspect because both will show the same pattern if they come from the same person.

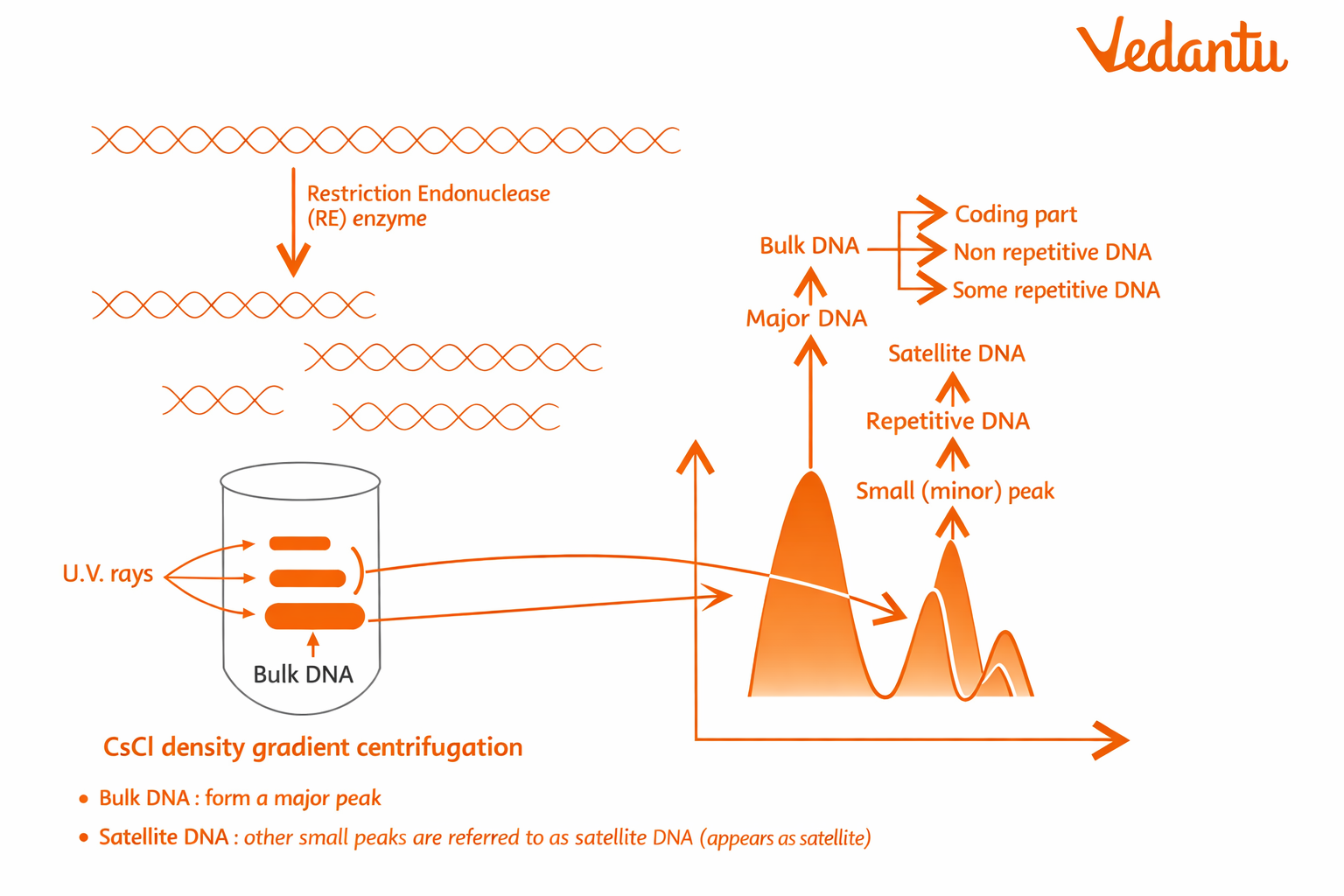

Satellite DNA

A large part of repetitive DNA belongs to a class called satellite DNA.

Satellite DNA is classified based on:

• base composition

• length of repeating unit

• number of repetitive units

Main Categories of Satellite DNA

Satellite DNA is especially important because these regions are highly polymorphic and differ among individuals.

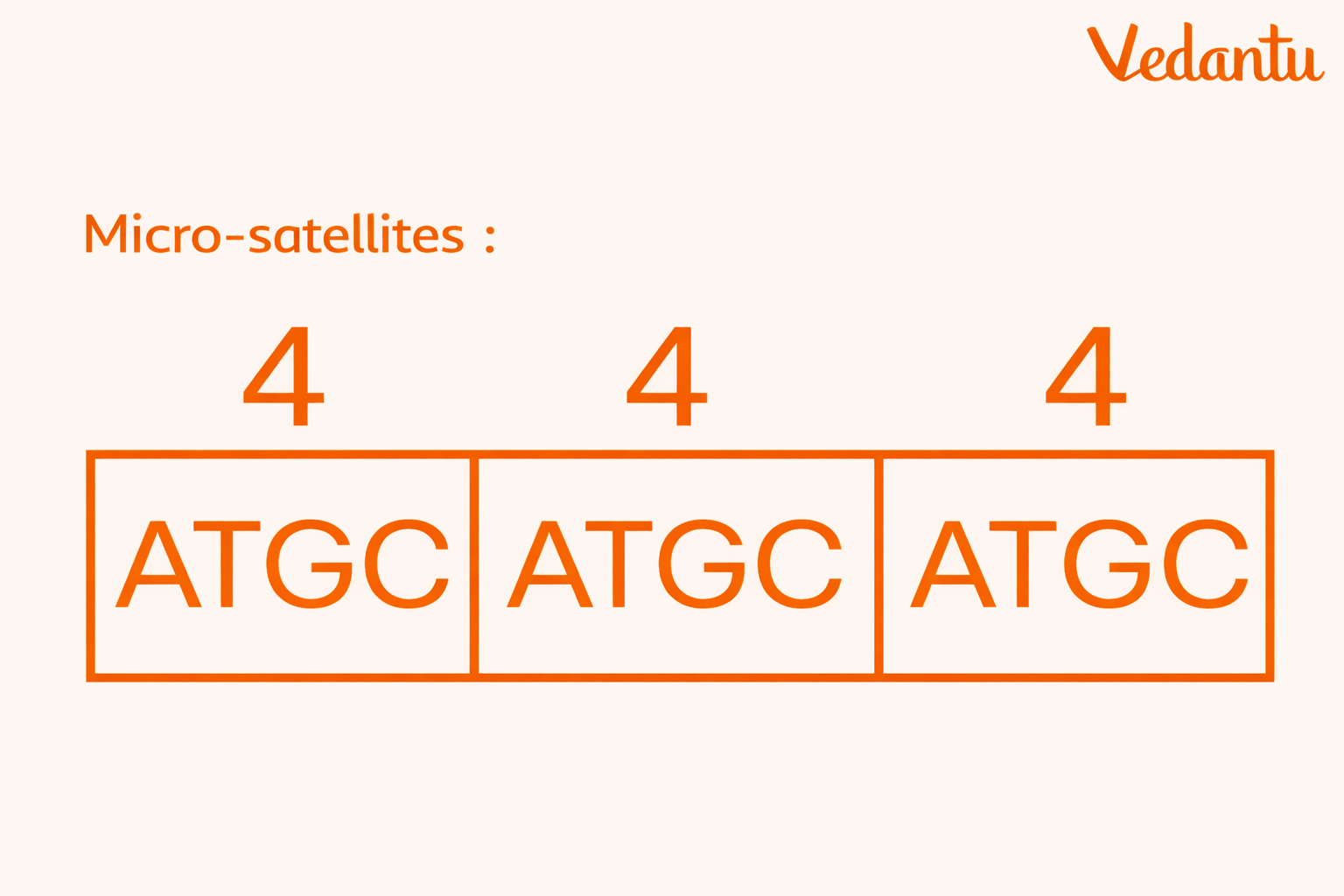

Microsatellites

Microsatellites are short DNA sequences in which a unit of 1 to 6 base pairs is repeated many times.

They are also called SSR – Simple Sequence Repeats.

Key features of microsatellites

• very short repeating units

• present at multiple places in the genome

• highly variable

• useful in genetic analysis and DNA studies

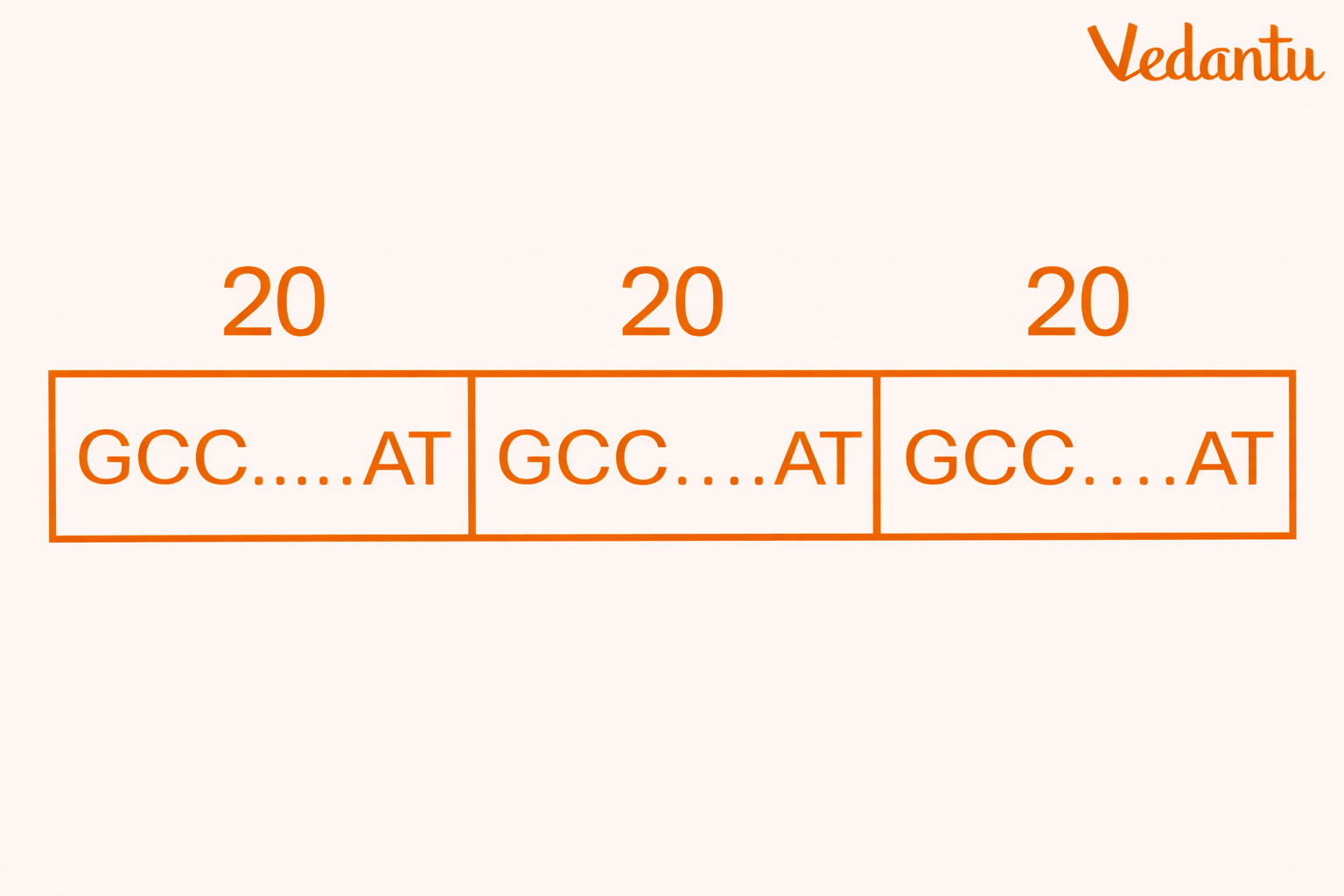

Minisatellites

Minisatellites consist of repeated DNA units that are usually 11 to 60 base pairs long.

They are also called VNTRs – Variable Number of Tandem Repeats.

These sequences are extremely important in classical DNA fingerprinting because the number of repeat units varies from person to person, producing fragments of different lengths.

VNTR Full Form and Meaning

VNTR stands for Variable Number of Tandem Repeats.

In VNTR regions:

• A short DNA sequence is arranged one after another in tandem

• The number of copies varies between individuals

• Even homologous chromosomes of the same individual may differ in repeat number

• This variation produces different DNA fragment lengths

Important features of VNTR

The high degree of polymorphism in VNTR regions makes them highly useful for identification.

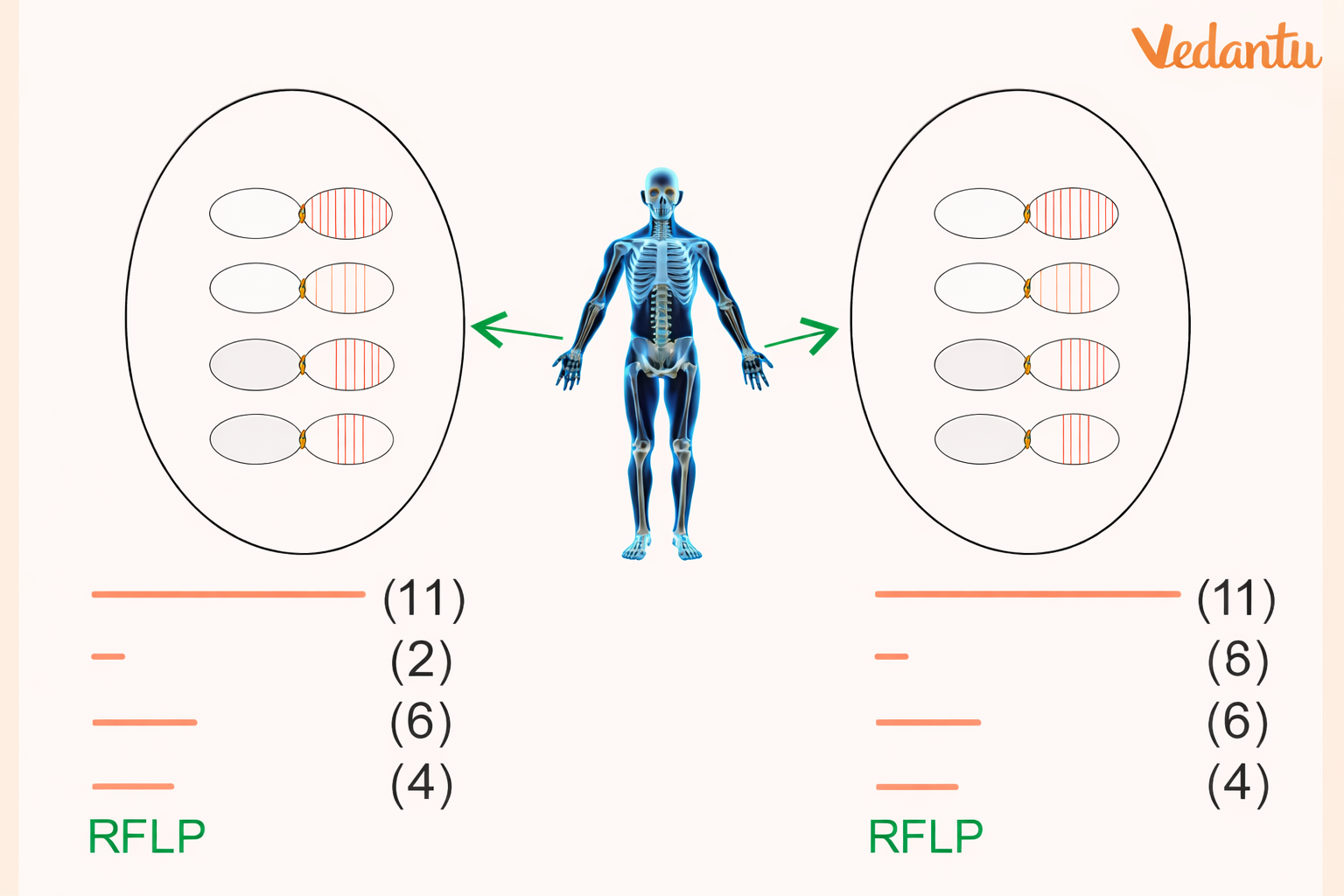

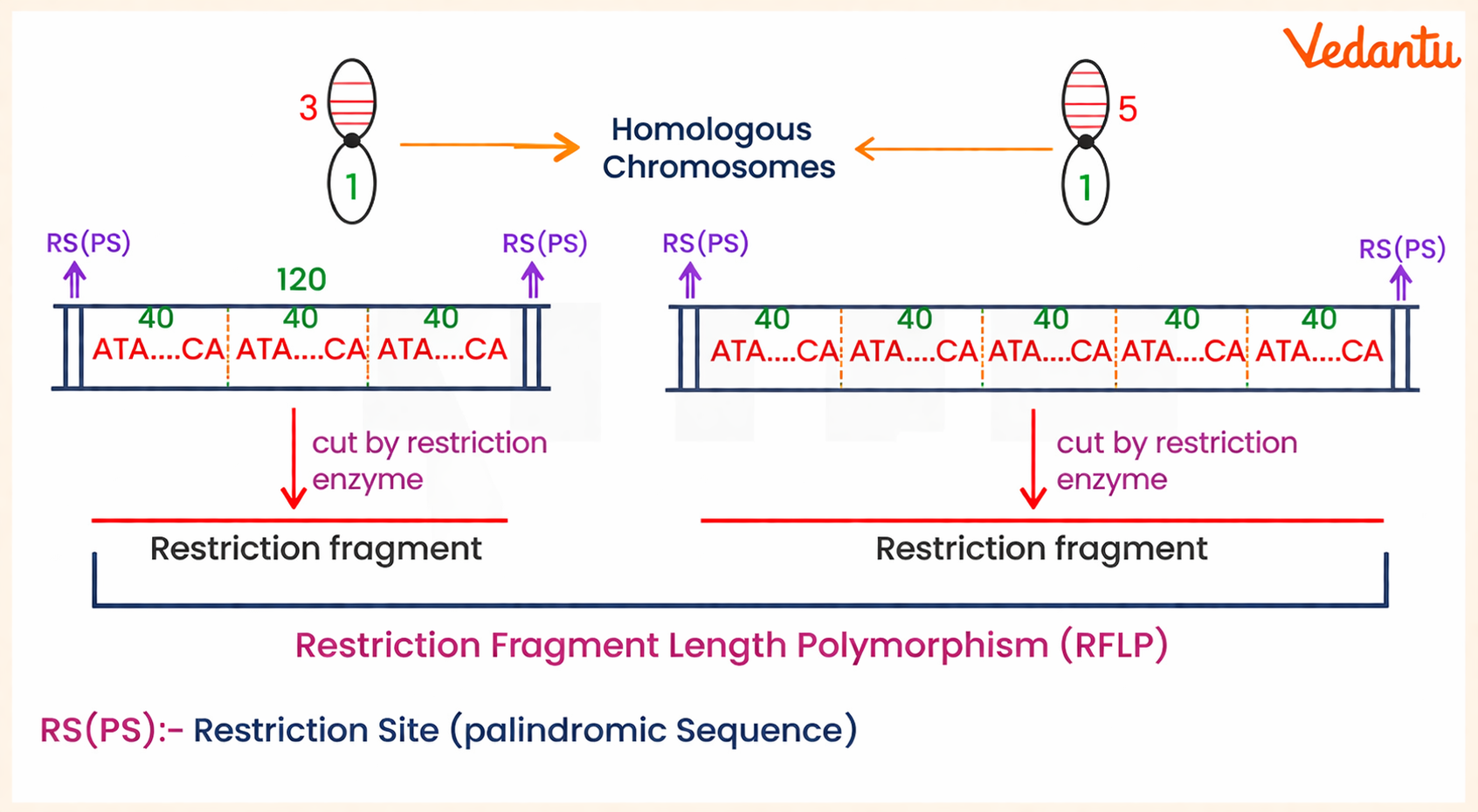

RFLP in DNA Fingerprinting

RFLP stands for Restriction Fragment Length Polymorphism.

This is a variation in the length of DNA fragments produced when DNA from different individuals is cut with the same restriction enzyme.

Why Fragment Lengths Differ?

The number of VNTR repeats varies among individuals. So when DNA is cut using the same restriction enzyme, the resulting fragments are of different sizes.

These differences in fragment length create a distinctive banding pattern after hybridisation and autoradiography, and this pattern becomes the person’s DNA fingerprint.

RFLP Forms the Basis of DNA Fingerprinting

If two individuals have different VNTR repeat numbers, their DNA fragments will show:

• different lengths

• different band positions

• different DNA fingerprint patterns

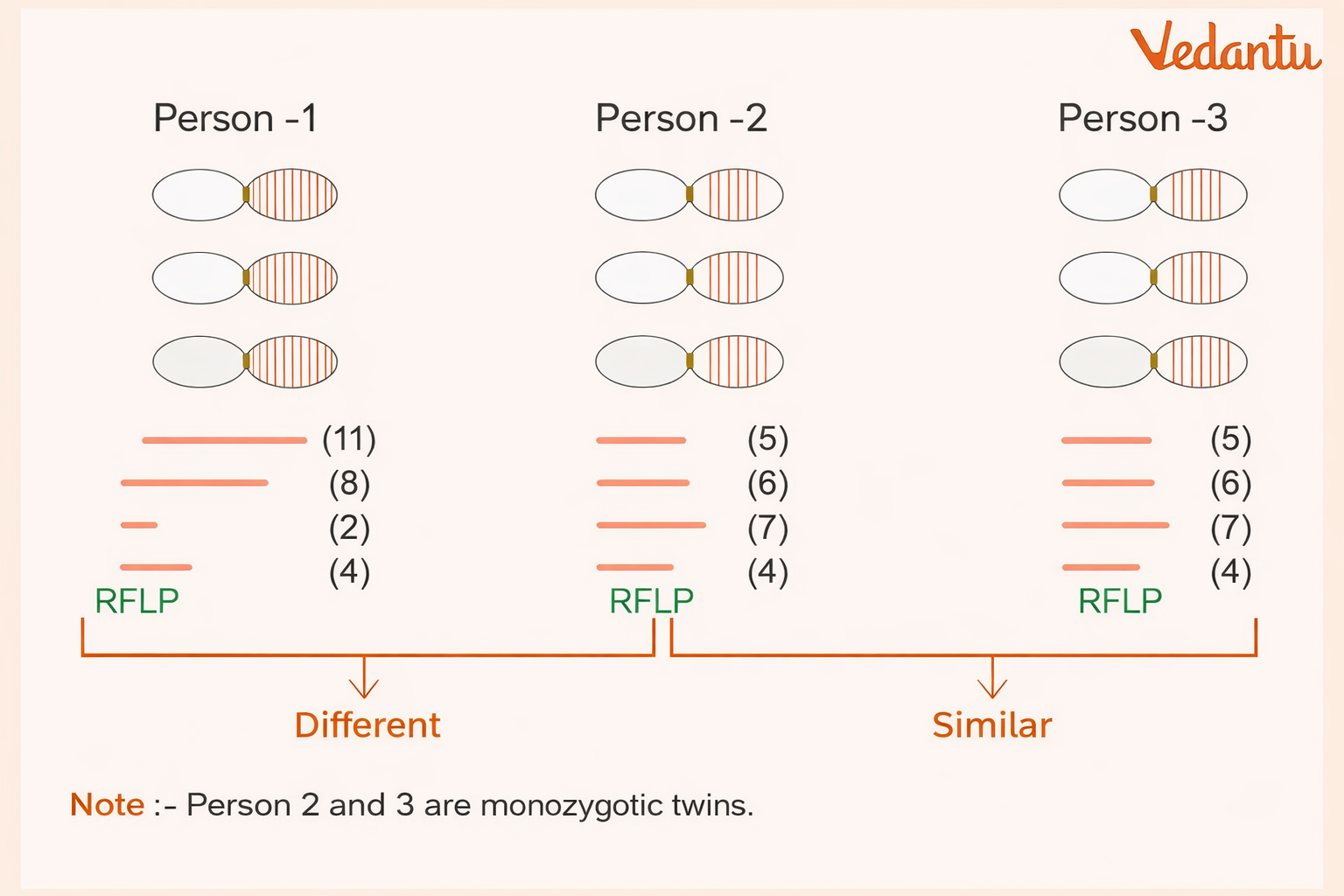

Cases where RFLP patterns can be the same

1. Monozygotic (identical) twins

2. Different tissues or cells of the same person

This is because identical twins originate from the same zygote and therefore have the same DNA pattern, and all tissues of one person contain the same DNA.

DNA Fingerprinting Technique: Steps of DNA Fingerprinting

DNA fingerprinting involves a sequence of carefully performed steps. Each step is important for obtaining an accurate and reliable DNA profile.

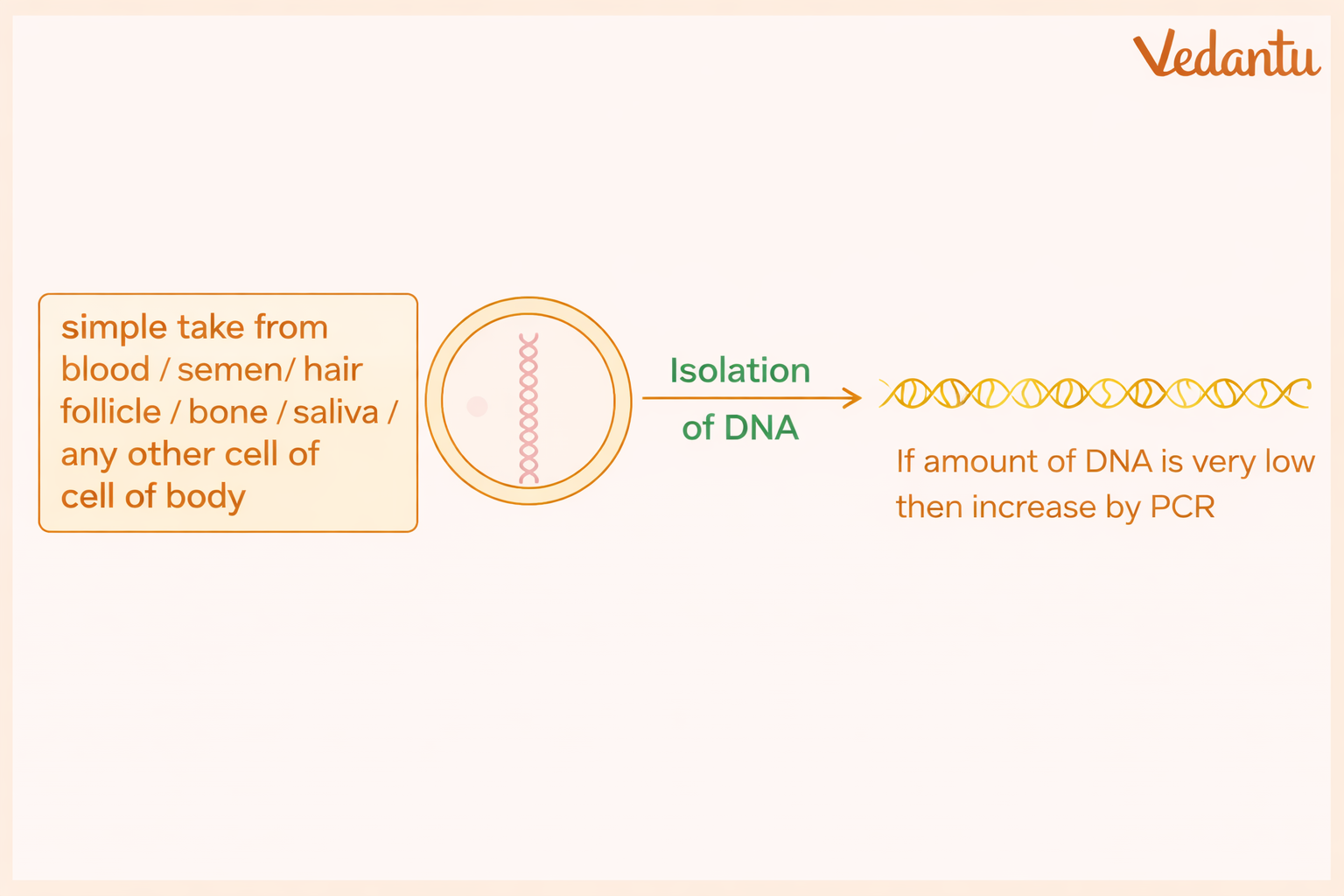

1. DNA Extraction

The first step is to isolate DNA from the biological sample. DNA may be obtained from:

• blood

• saliva

• semen

• hair root

• skin cells

• bone

• tissues

The cells are broken open by cell lysis, and DNA is separated from the rest of the cellular material.

If the amount of DNA is very small, it may be amplified using PCR (Polymerase Chain Reaction) to generate enough DNA for analysis.

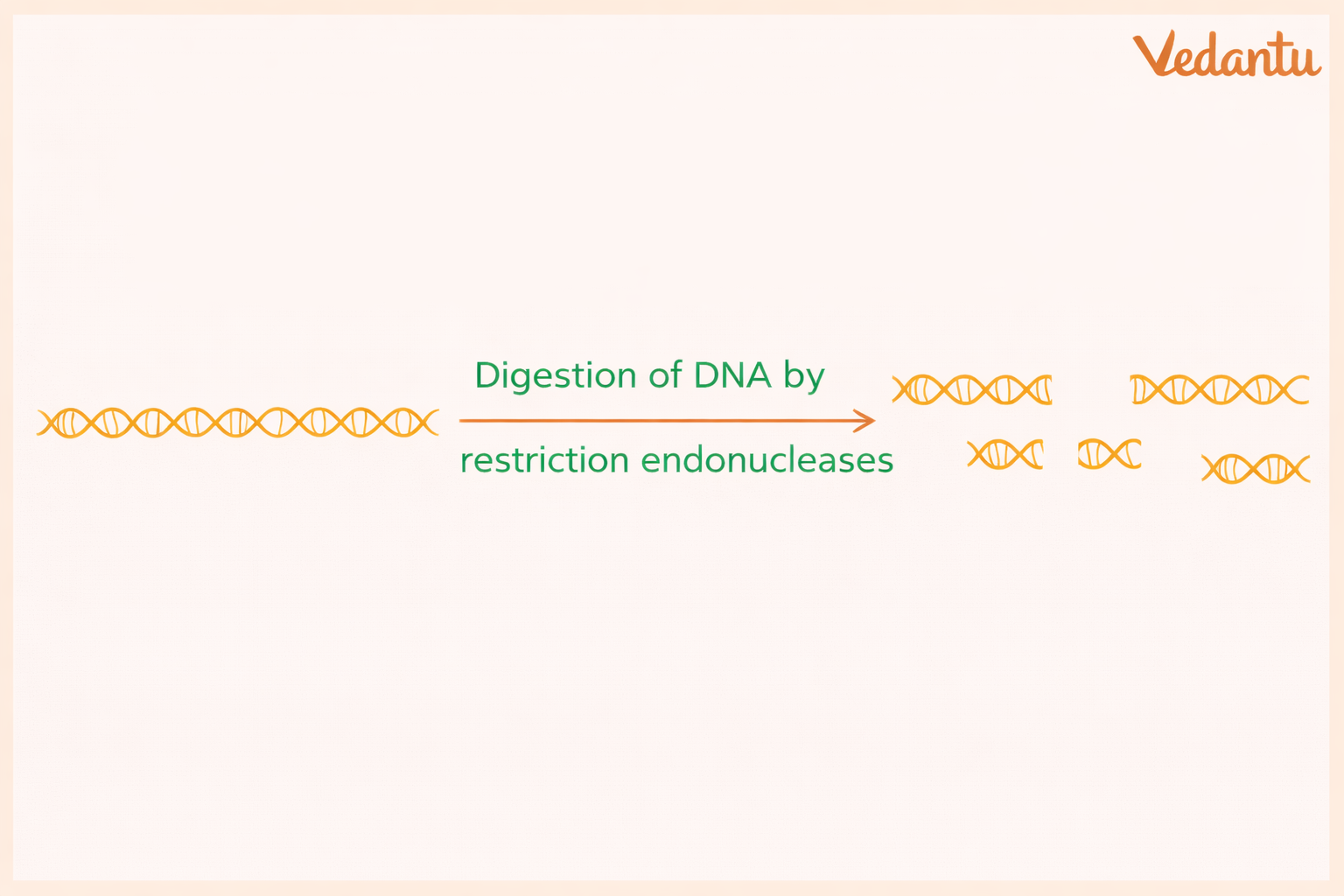

2. Restriction Enzyme Digestion

In this step, the extracted DNA is cut into fragments using a specific restriction enzyme.

The content mentions Hae III, an enzyme obtained from Haemophilus aegyptius, which recognises a specific DNA sequence, such as GGCC and cuts DNA at that site.

Because the number of repeats differs from person to person, the lengths of the cut fragments also differ. These fragments are then prepared for separation in a gel.

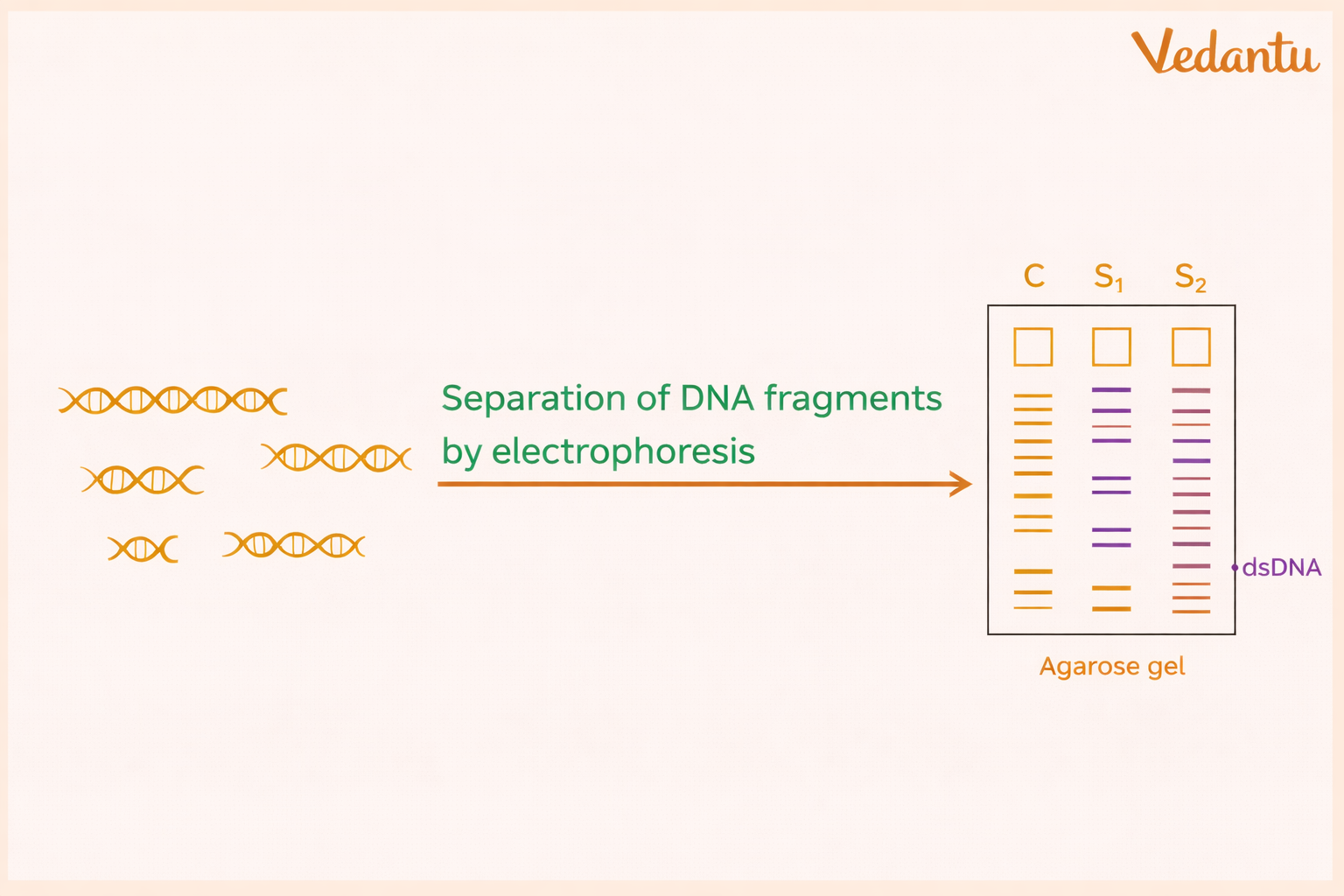

3. Gel Electrophoresis

The DNA fragments are separated using gel electrophoresis.

DNA carries a negative charge because of its phosphate backbone, so when an electric current is passed through the gel:

• DNA fragments move toward the positive electrode

• smaller fragments move faster

• Larger fragments move more slowly

As a result, the DNA fragments become separated according to their size. Agarose gel is commonly used for this purpose.

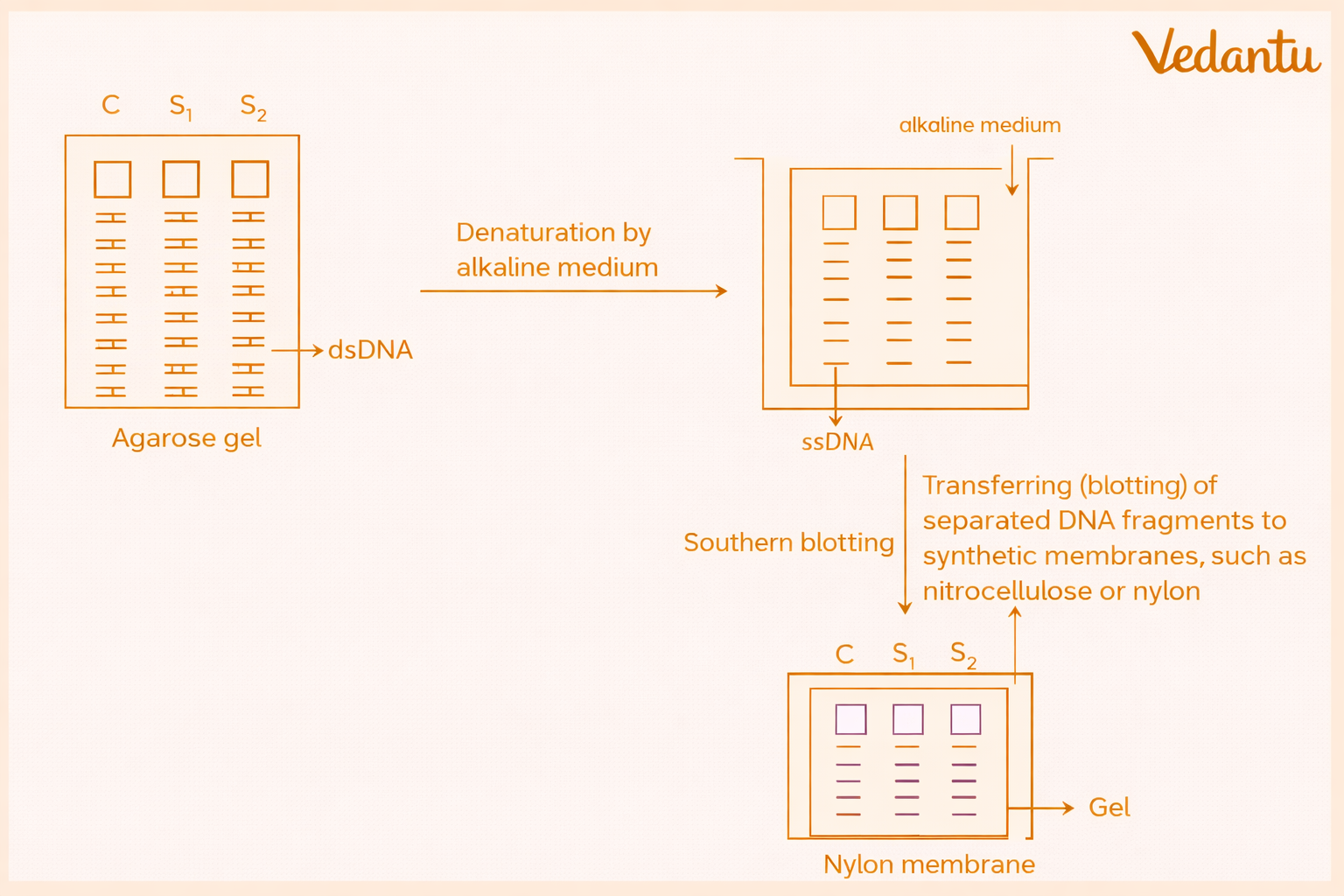

4. Southern Blotting or Southern Transfer

After separation, the DNA fragments in the gel are transferred onto a nylon membrane. This technique is called Southern blotting, named after Edward Southern.

Before transfer, the DNA is denatured to form single strands. The separated DNA fragments are then blotted onto the membrane and fixed in position. This step stabilises the DNA, making it more suitable for hybridisation.

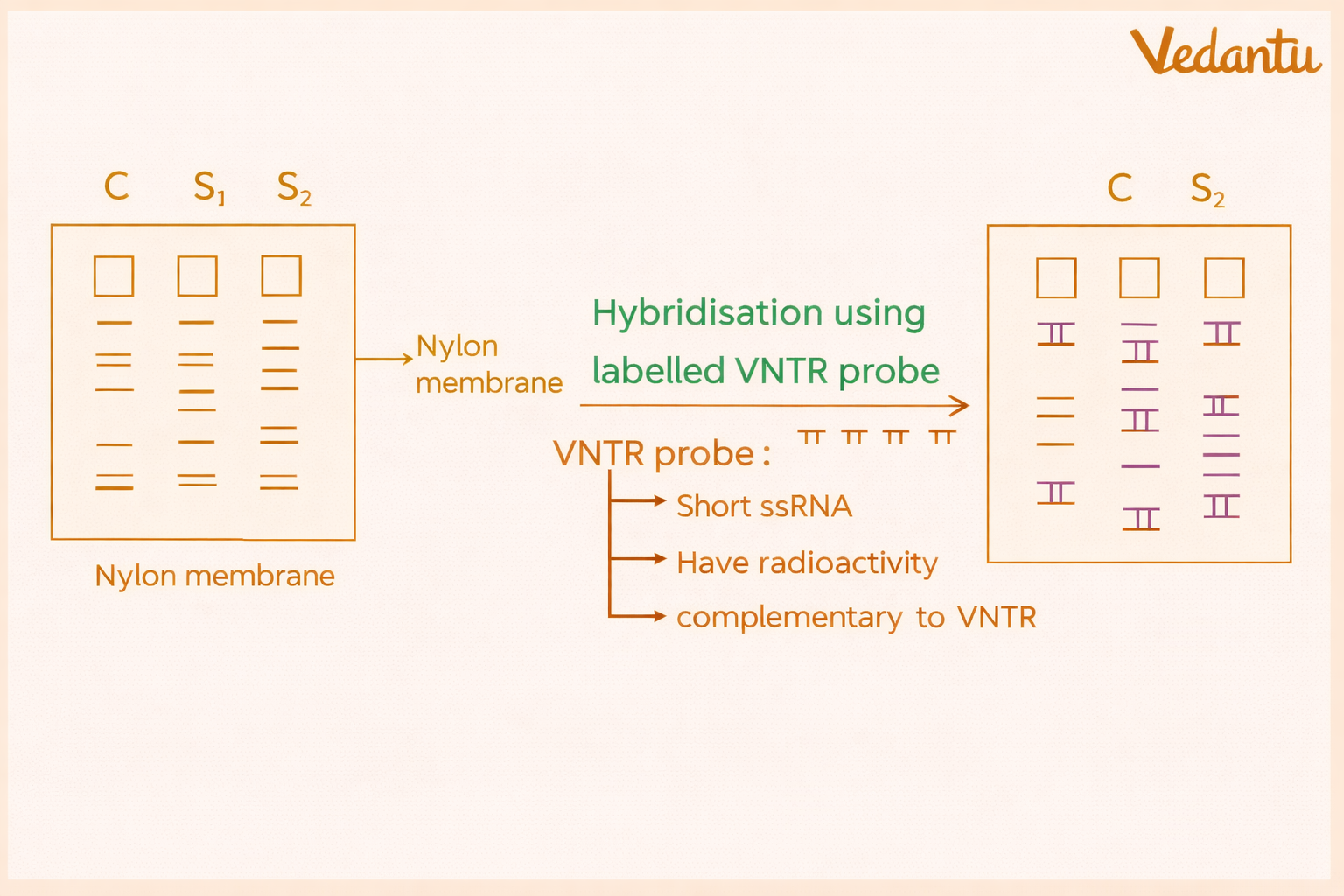

5. Hybridisation with Labelled Probe

In this step, a radioactively labelled DNA probe is used to detect specific DNA sequences, especially VNTR regions.

The probe is single-stranded and complementary to the target DNA sequence. It binds to matching DNA fragments on the membrane.

The content mentions probes labelled with radioactive phosphorus-32. These probes specifically bind to the variable repetitive DNA regions and help identify the positions of interest.

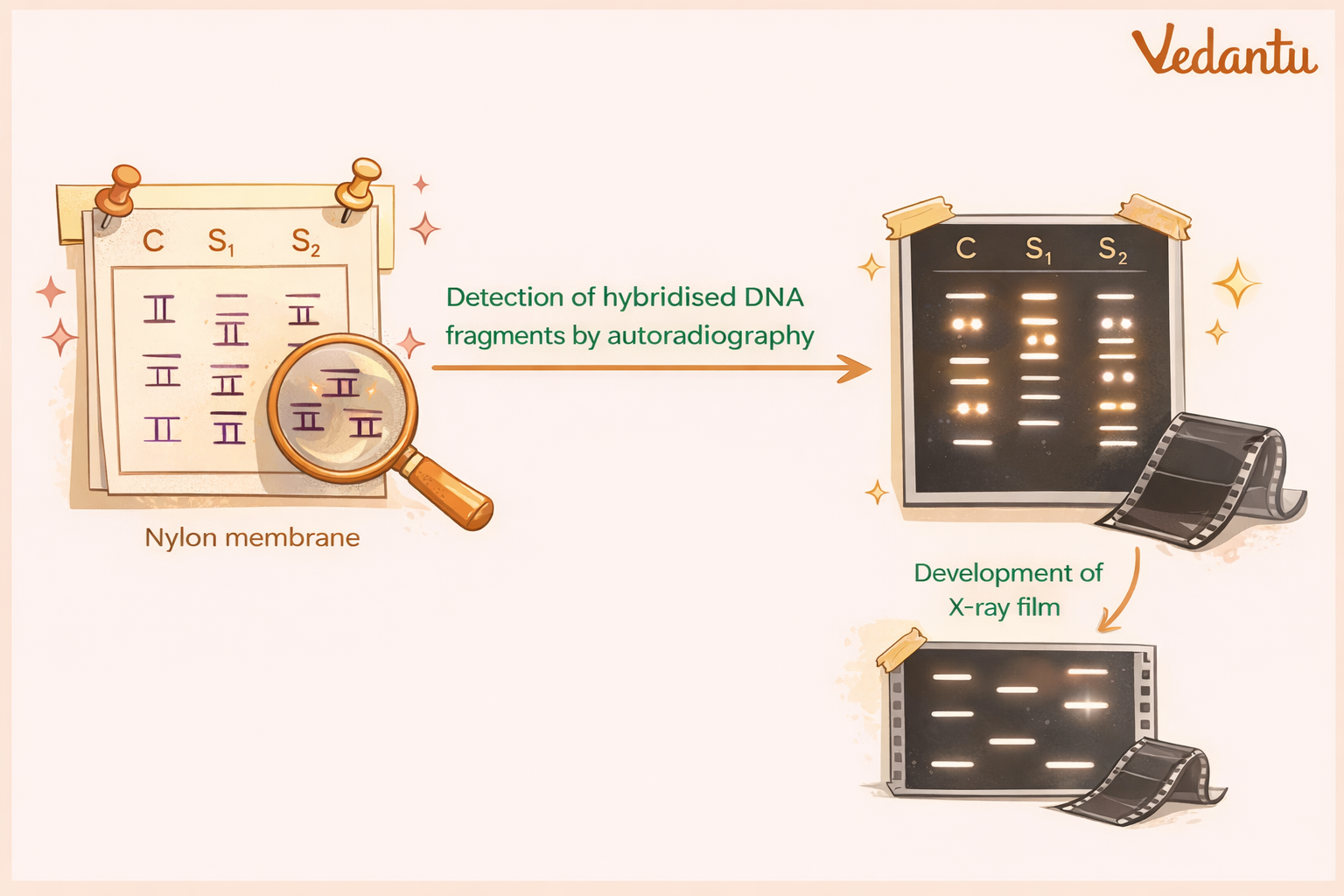

6. Autoradiography

The membrane containing the probe-bound DNA fragments is placed against an X-ray film.

The radioactive labels expose the film, producing dark bands at specific positions. These bands form a characteristic pattern called the DNA fingerprint.

This banding pattern:

• is unique for each individual

• Varies greatly among unrelated individuals

• Is the same in all tissues of one person

• Is the same in identical twins

DNA Fingerprinting Process at a Glance

This sequence produces the final DNA profile used for identification.

Why is DNA Fingerprinting Highly Reliable?

DNA fingerprinting is considered highly reliable because the chance of two unrelated individuals having the same fingerprint is extremely low.

Its reliability comes from:

• high polymorphism in VNTR regions

• inheritance of DNA patterns

• stability of DNA in different tissues

• precise laboratory methods

This makes DNA fingerprinting a powerful identification tool in biology, medicine, and forensic science.

Applications of DNA Fingerprinting

DNA fingerprinting has a wide range of practical applications.

1. Paternity Testing

This is one of the most common uses of DNA fingerprinting. The DNA fingerprint of a child is compared with that of the mother and the alleged father.

Since a child inherits:

• 50% of the DNA from the mother

• 50% of the DNA from the father

Matching patterns help determine biological parentage. DNA fingerprinting is therefore widely used in paternity disputes and family relationship testing.

2. Criminal Identification

DNA fingerprinting plays a major role in forensic science.

Biological samples collected from a crime scene, such as:

• blood

• semen

• hair roots

• saliva

• skin tissue

It can be compared with the suspects' DNA.

This is especially useful in serious cases such as:

• murder

• rape

• assault

• missing persons cases

By matching DNA patterns, investigators can connect a suspect to the crime scene with a high degree of accuracy.

3. Identification of Dead Bodies

DNA fingerprinting is extremely useful in identifying bodies in cases of:

• natural disasters

• air crashes

• fires

• accidents

• war casualties

Even when the body is damaged or difficult to identify visually, DNA can help establish identity by comparing samples with those of family members.

4. Immigration and Family Disputes

DNA fingerprinting is also used in legal and civil cases where biological relationships need to be proven. It can help in:

• immigration disputes

• inheritance cases

• child custody matters

• family reunification claims

5. Population and Genetic Diversity Studies

DNA fingerprinting helps scientists study:

• genetic variation within populations

• relatedness among individuals

• biodiversity

• population structure

• evolutionary relationships

By comparing DNA patterns among groups, researchers can understand how genetically similar or different populations are.

Importance of DNA Fingerprinting in India

In India, CDFD – Centre for DNA Fingerprinting and Diagnostics, Hyderabad, is an important institution associated with DNA fingerprinting research and applications.

It has played a significant role in:

• DNA-based diagnostics

• forensic applications

• genetic studies

• research and training

DNA Fingerprinting vs DNA Sequencing

Students often confuse DNA fingerprinting with DNA sequencing, so this distinction is useful.

DNA fingerprinting does not require complete DNA sequencing. It only studies selected highly variable repetitive regions.

Key Terms in DNA Fingerprinting

DNA Fingerprinting Flowchart

Sample collection → DNA extraction → Restriction digestion → Gel electrophoresis → Southern blotting → Probe hybridisation → Autoradiography → DNA band pattern analysis

This is the complete classical workflow of DNA fingerprinting.

Exam-Focused Points to Remember

• DNA fingerprinting is based on polymorphism in repetitive DNA sequences

• It was developed by Sir Alec Jeffreys in 1984

• The most important repetitive sequences used are VNTRs

• VNTR belongs to minisatellite DNA

• RFLP is the variation in fragment length after restriction digestion

• DNA from all tissues of one individual shows the same fingerprint

• Identical twins have the same DNA fingerprint

• DNA fingerprinting is used in forensics, paternity testing, and population studies

• In India, an important centre is CDFD, Hyderabad

Conclusion

DNA fingerprinting is one of the most significant tools in modern biology and forensic science. It is based on variations in repetitive DNA regions, especially VNTRs, and helps create a unique genetic profile for every individual except identical twins. From crime investigation and paternity testing to population genetics and body identification, DNA fingerprinting has transformed the way biological identity is established. For students, this topic is important because it integrates genetics, molecular biology, biotechnology, and real-world applications in a highly exam-relevant way.
