How Does Contact Angle Affect Surface Tension in Liquids?
Surface tension and contact angle are fundamental concepts in the study of liquids at interfaces. Understanding their relationship is crucial for tackling JEE Physics problems related to wetting and cohesion.
Surface Tension
Surface tension is the force at a liquid's surface that causes molecules to attract each other, resulting in minimal surface area. This cohesive effect maintains the integrity of liquid drops.
For example, water droplets form spheres due to surface tension trying to reduce the surface area. Many students wrongly think surface tension acts only at the air-liquid interface, but it also acts at other phase boundaries.
To explore more about related forces and behaviours, you can refer to Properties of Solids and Liquids on Vedantu.
Contact Angle
Contact angle measures how a liquid drop meets a solid surface, representing the angle between the liquid–solid and liquid–vapor boundaries. A high contact angle indicates low wettability; the droplet remains round.
Conversely, a low contact angle means the surface is highly wetting, and the drop spreads out. This concept is tested in JEE, often linking the angle with surface wetting properties.
Surface Tension and Contact Angle Relationship
The surface tension and contact angle relationship is defined by Young's equation, central to understanding capillarity and wetting in competitive exams.
The surface tension contact angle equation (Young’s equation) is:
γSV = γSL + γLVcosθ
Here, γSV is surface tension between solid and vapor, γSL between solid and liquid, γLV between liquid and vapor, and θ is the contact angle.
This relation between surface tension and contact angle explains why some liquids bead up while others spread. A misconception is that higher surface tension always leads to lower contact angle, but surface energy matters too.
The Surface Energy of the solid also affects contact angle and wetting, especially in applications involving coatings and adhesives.
Interfacial Tension, Wettability, and Wetting Angle
Interfacial tension between the liquid and solid determines how the two interact and contributes to the wetting angle or surface tension vs contact angle behaviour.
- High interfacial tension: low wetting, high contact angle
- Low interfacial tension: high wetting, low contact angle
Wettability increases as the wetting angle (contact angle) decreases. For example, water on a clean glass has a low contact angle, spreading out due to strong adhesive forces.
Many believe all liquids behave the same, but the surface tension and wetting angle depend on both liquid and solid properties.
Applications include ink adhesion on paper and paint coating, both requiring understanding of interfacial tension and contact angle for optimal results.
Further explore capillary phenomena through Fluid Pressure discussions on Vedantu.
Summary Table: Key Points
| Concept | Definition | JEE Insight |
|---|---|---|
| Surface Tension | Molecular cohesion at liquid surface | Determines drop formation, capillarity questions |
| Contact Angle | Angle between solid–liquid and liquid–vapor boundary | Indicates wetting vs non-wetting surfaces |
| Interfacial Tension | Adhesion force at liquid–solid boundary | Key for wetting and adhesion MCQs |
Critical surface tension and contact angle with water for various polymers are also important from an industrial standpoint. In exams, understanding these relationships helps distinguish between hydrophobic and hydrophilic surfaces.
If you want to deepen your grasp on force calculations arising from surface tension, check the Force on a Current-Carrying Conductor resource.
Knowing how to define surface tension and angle contact aids in solving advanced questions, such as those on Hinge Force and related competitive exam topics.
In summary, mastering the relation between surface tension and contact angle enables you to tackle a wide range of conceptual and calculation-based questions, enhancing your score in JEE Physics. For comparison concepts, see Difference Between Density and Specific Gravity on Vedantu.
FAQs on Understanding Surface Tension and Contact Angle
1. What is surface tension?
Surface tension is the property of a liquid's surface that causes it to behave like a stretched elastic sheet. It is caused by the cohesive forces between liquid molecules at the surface.
- Molecules at the surface have higher potential energy than those in the bulk.
- The phenomenon leads to effects such as droplets forming spherical shapes and insects walking on water.
- Measured in Newton per meter (N/m).
2. What is the contact angle in surface tension?
Contact angle is the angle formed at the contact point where a liquid, solid, and gas (usually air) meet.
- It determines whether a liquid spreads on a surface (wetting) or forms droplets (non-wetting).

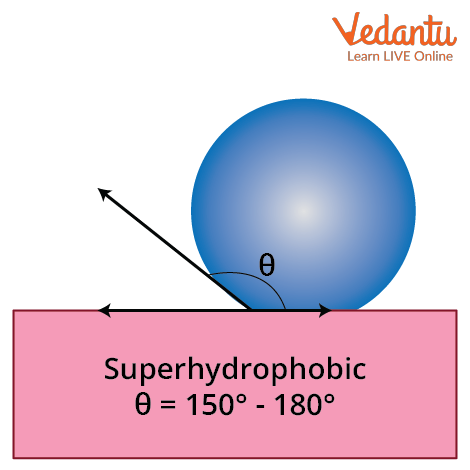

- If the contact angle is less than 90°, the surface is hydrophilic; above 90°, it is hydrophobic.
- It reflects the degree of adhesion and cohesion among the phases.
3. Explain the causes of surface tension.
Surface tension arises mainly due to intermolecular cohesive forces between liquid molecules at the surface.
- At the surface, molecules experience a net inward force as there are no molecules above them.
- This imbalance creates a tendency to minimize surface area, resulting in surface tension.
- Major factors: Cohesion (between similar molecules), Temperature (inversely), and Impurities (can increase or decrease surface tension).
4. How is surface tension measured experimentally?
Surface tension can be measured using instruments and experiments like the capillary rise method, drop weight method, and Wilhelmy plate method.
- In capillary rise, the rise or depression of a liquid in a capillary tube is related to surface tension.
- The drop weight method involves measuring the mass of drops formed at the nozzle of a burette.
- Wilhelmy plate method uses a thin plate partially immersed in the liquid and measures the force required to detach it.
5. What are some practical applications of surface tension in daily life?
Surface tension has several practical uses in daily life and industry.
- Allows insects like water striders to walk on water.
- Responsible for soap bubbles, droplet formation, and cleaning action of detergents.
- Crucial in capillary action, such as water moving up plant roots.
- Used in inkjet printing, paints, and formation of rain drops.
6. What is the difference between cohesion and adhesion in the context of surface tension?
Cohesion refers to the attraction between similar molecules, while adhesion is the attraction between different types of molecules.
- Cohesion mainly causes surface tension by pulling surface molecules inward.
- Adhesion is responsible for wetting of surfaces and capillary action.
- The balance between both determines the contact angle and behavior of liquids on solids.
7. How does temperature affect surface tension?
Surface tension decreases with increasing temperature.
- Higher temperature increases molecular motion, reducing cohesive forces at the surface.
- As a result, the liquid surface becomes less 'tight'.
- This property affects evaporation, boiling, and the efficiency of cleaning agents.

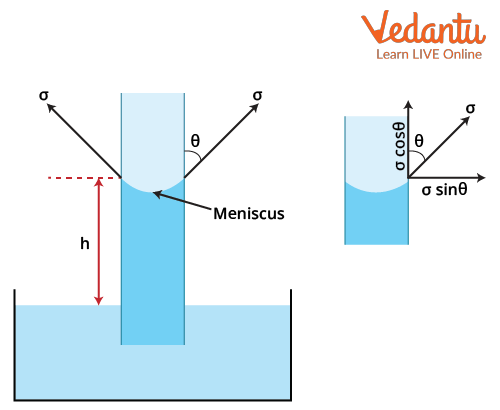

8. What is the formula for calculating surface tension using capillary rise?
The formula for surface tension (T) based on capillary rise is:
T = (r h ρ g) / (2 cos θ), where:
- r = radius of capillary tube
- h = height of liquid column
- ρ = density of liquid
- g = acceleration due to gravity
- θ (theta) = contact angle
9. Define angle of contact and give its significance with examples.
Angle of contact is the angle designed between the tangent to the liquid surface and the solid surface at the point of contact.
- A small angle (less than 90°) indicates good wetting, such as water on glass.
- A large angle (greater than 90°) shows poor wetting, like mercury on glass.
- It helps explain capillary rise/depression, drop formation, and cleaning efficiency.
10. Why do small insects like mosquitoes and water striders not sink in water?
Small insects do not sink in water mainly because of surface tension of water.
- Their weight is not enough to break the liquid surface film.
- The surface acts as a stretched membrane due to cohesive forces.
- This enables insects such as mosquitoes and water striders to walk or stand on water surface.
