Understanding Current Electricity: Concepts, Formulas, and Uses

Current electricity refers to the continuous flow of electric charge through a conductor due to a potential difference. This phenomenon underpins the operation of electrical circuits and is fundamental in the study of physics and engineering, especially for applications in modern technology and examinations like JEE Main.

Nature and Definition of Electric Current

Electric current ($I$) is defined as the rate of flow of electric charge ($Q$) through a cross-section of a conductor. It is a scalar quantity with the SI unit ampere (A). The fundamental expression for electric current is $I = \dfrac{Q}{t}$, where $t$ is the time interval in seconds.

The direction of conventional current is taken as the direction a positive charge would move, from higher to lower potential. However, in metallic conductors, it is electrons (negatively charged) that flow in the opposite direction of conventional current.

Types of Current: Direct and Alternating

Current electricity is broadly classified into direct current (DC) and alternating current (AC), based on the direction of flow of charges. DC flows in a single fixed direction, while AC changes direction periodically. Understanding these types is essential in circuit analysis and practical applications.

Electric circuits using DC sources like cells have unidirectional charge motion, whereas AC sources cause cyclic reversal in the movement of charge carriers. This distinction guides their use in devices and power systems.

Current Electricity vs Static Electricity

Unlike static electricity, which involves stationary charges, current electricity deals with moving charges within a closed conducting path. The steady flow of charges constitutes current, whereas static charges result in short-lived phenomena without continuous flow.

The understanding of differences between current electricity and static electricity is foundational in physics and is frequently examined in competitive assessments.

Fundamental Laws and Formulae of Current Electricity

Key laws govern current electricity and enable calculation of related quantities. Ohm's law is a primary relationship, connecting current ($I$), voltage ($V$), and resistance ($R$) in a conductor using the equation $V = IR$.

The resistance ($R$) of a conductor depends on its material (resistivity $\rho$), length ($l$), and cross-sectional area ($A$), described as $R = \rho \dfrac{l}{A}$. Power ($P$) dissipated in a conductor is given by $P = VI = I^2R = \dfrac{V^2}{R}$.

These formulae are crucial in calculations involving electric circuits, especially for problem-solving in exams and practical engineering. For detailed exploration of resistance concepts, refer to Electrical Resistance.

Microscopic Origin: Drift Velocity

The flow of current in metallic conductors results from the drift of free electrons under an applied electric field. The average velocity attained by these electrons, known as drift velocity ($v_d$), links microscopic motion to macroscopic current.

The relation is $I = nAe v_d$, where $n$ is the number of free electrons per unit volume, $A$ is the cross-sectional area, $e$ is the elementary charge, and $v_d$ is the drift velocity. This expression connects material properties to observable current.

Effects of Electric Current

When electric current passes through a conductor, it produces observable effects such as the magnetic, chemical, and heating effects. Each effect is applied extensively in technology and laboratory setups.

• Magnetic field generation around conductors
• Heating due to resistance in the pathway
• Chemical changes during electrolysis processes

The Joule’s law of heating quantifies the heat produced by a current, given by $H = I^2Rt$, where $H$ is heat in joules, $I$ is the current, $R$ is the resistance, and $t$ is time in seconds.

Current’s magnetic effect forms the basis of electromagnets, motors, and transformers, while the chemical effect appears in electroplating and electrolytic cells. Understanding these effects is essential in both theoretical and practical domains.

Analyzing Circuits: Series and Parallel Connections

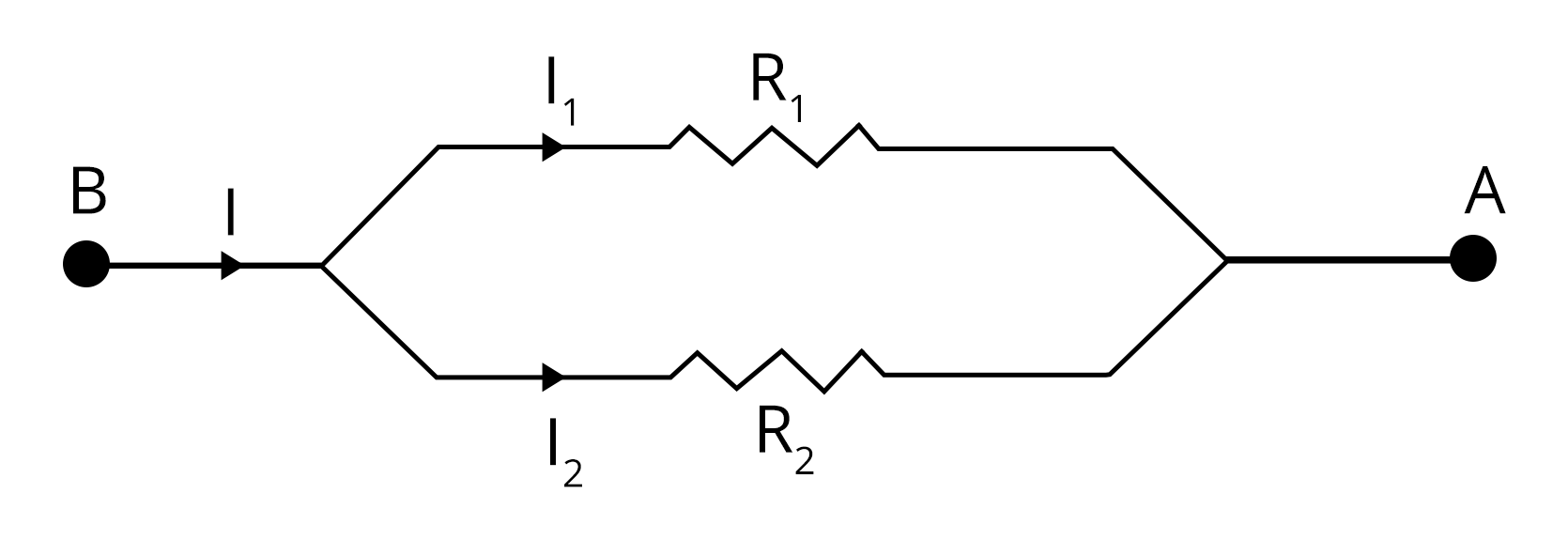

Electric circuits may contain resistors connected in series or parallel. For series connection, total resistance is additive: $R_\text{eq} = R_1 + R_2 + \dots$. For parallel connection, the reciprocal law applies: $\dfrac{1}{R_\text{eq}} = \dfrac{1}{R_1} + \dfrac{1}{R_2} + \dots$

Solving such networks requires the proper application of Ohm’s law and equivalent resistance formulae. Circuit problem-solving is further detailed in Circuit Solving.

Sample Problems in Current Electricity

Solving numerical problems strengthens conceptual understanding. Sample calculations using the above relations are crucial for JEE Main preparation and practical applications.

• Find the current ($I$) when $Q=1200\,\text{C}$ flows in $4\,\text{min}$: $I = \dfrac{Q}{t} = \dfrac{1200}{240} = 5\,\text{A}$.
• If a $8\,\Omega$ resistor carries a current of $3\,\text{A}$, the voltage is $V = IR = 3 \times 8 = 24\,\text{V}$.
• For resistors of $4\,\Omega$ and $12\,\Omega$ in parallel, $R_\text{eq} = \dfrac{1}{\dfrac{1}{4} + \dfrac{1}{12}} = 3\,\Omega$.

Mastery in solving such problems improves accuracy and confidence in examination settings. Practice is essential for developing speed and reliability in current electricity questions. For practice, use the Current Electricity Mock Test.

Applications of Current Electricity

Current electricity enables the functioning of devices such as lights, computers, medical equipment, transformers, and motors. It is central to power transmission and modern electronics. Technological progress relies on controlled flow of current in various circuit configurations.

• Household lighting and heating systems
• Electric trains and transportation
• Computers and communication devices
• Electrolysis and chemical processing

Advanced devices like RL circuits and precision measuring instruments utilize principles of current electricity. Study more about RL circuit applications at RL Circuit.

Units and Measurement in Current Electricity

The ampere (A) is the SI unit of electric current. Electric charge is measured in coulombs (C), potential difference in volts (V), and resistance in ohms (Ω). Accurate measurement using ammeters, voltmeters, and other devices is necessary for circuit analysis.

Precision in unit usage and measurement techniques is crucial in performing correct calculations and interpreting experimental results. Related concepts such as EMF and internal resistance are further explained at EMF and Internal Resistance of a Cell.

Key Points for Mastery in JEE Main

To excel in current electricity, it is essential to remember core formulae, understand differences between circuit types, and develop proficiency in applying laws to analyze electrical networks. Consistent practice with JEE-type problems ensures conceptual clarity and problem-solving speed.

• Memorize $I = Q/t$, $V = IR$, $P = I^2R$
• Distinguish between AC and DC behavior
• Apply correct methods for series and parallel
• Use SI units consistently in calculations
• Refer to standard sign conventions in circuits

More resources for strengthening concepts in resistance and Ohm’s law can be found at Ohm's Law and Resistance.
