How to Draw and Label the Human Liver: Step-by-Step Guide
The concept of liver diagram is essential in biology and helps explain real-world biological processes and exam-level questions effectively. A good understanding of the liver diagram is important for students preparing for CBSE, ICSE, and other board exams, since labeling and drawing this structure is a common requirement.
Understanding Liver Diagram
Liver diagram refers to a visual representation that shows the anatomical structure, position, and main lobes of the liver within the human body. This concept is important in areas like human anatomy, digestive system biology, and exam preparation. The liver plays a significant role in digestion, detoxification, and metabolism. Recognizing its anatomy through diagrams helps students identify different parts such as lobes, blood vessels, and its orientation inside the abdomen.
Location of Liver in the Human Body
The liver is the largest gland in the human body and is located in the upper right portion of the abdomen, just beneath the diaphragm and above the stomach. It is mainly on the right side but extends towards the left. Understanding the location of liver in body is vital for correct labeling and diagram drawing in biology exams.
Features of a Labeled Liver Diagram
A liver diagram labeled clearly marks the main anatomical features. For exam purposes, remember to show:
- Right lobe (larger in size)
- Left lobe (smaller in size)
- Falciform ligament (divides the lobes)
- Gallbladder (under right lobe, stores bile)
- Major blood vessels: hepatic artery, portal vein, hepatic vein
- Bile duct
These parts are frequently asked in board and competitive exams. Practice drawing and labeling them for clear answers!
Simple and Unlabeled Liver Diagrams for Practice
For revision, students benefit from simple or liver diagram unlabeled sketches. Start with the basic shape—a wedge or prism with a rounded right side and a pointed left side. Practice with unlabeled drawings helps test your memory and labeling accuracy.
- Draw the outline (wedge shape)
- Divide into right and left lobes
- Add gallbladder under the right lobe
- Sketch blood vessels
Step-by-step drawing enhances your confidence during quick exam revision.
Anatomy and Lobes of the Liver
The liver is divided into lobes and segments. For exam diagrams, focus on:
- Right lobe (largest, to the right of the falciform ligament)
- Left lobe (smaller, to the left of the ligament)
- Other segments: caudate and quadrate (may be labeled for extra marks)

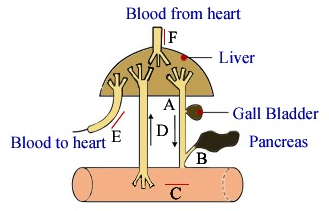

The hepatic artery, portal vein, and bile duct are often drawn near the lower or posterior edge, showing their relationships to the lobes.
Relationship of Liver to Other Organs
A detailed liver diagram with ribs or posterior views sometimes shows the liver in relation to:
- Ribcage (protects upper part of the liver)
- Stomach (left and slightly below liver)
- Right kidney and diaphragm (behind and above the liver)
- Gallbladder (under the right lobe)
This helps you understand its positioning during practical or theory questions.
Main Functions Shown in a Liver Diagram
The liver has several key functions, often summarized in revision tables:
| Function | Description |
|---|---|
| Bile production | Helps digest fats in the intestine |
| Detoxification | Removes toxins from blood |
| Metabolism | Regulates glucose, fats, and proteins |
| Storage | Stores vitamins, iron, and glycogen |
| Blood filtration | Removes old blood cells |
| Clotting factor synthesis | Produces important proteins for clotting |
Learn these functions well for quick revision. For a full list, see liver functions on Vedantu.
Practice Questions
- Draw and label a liver diagram as asked in exams.
- List the main functions of the liver shown in the diagram.
- Where is the liver located in the human body?
- Why are blood vessels important to label in a liver diagram?
Common Mistakes to Avoid
- Mixing up the right and left lobes (right is always larger).
- Forgetting to add and label the gallbladder or bile duct.
- Omitting key blood vessels (portal vein, hepatic artery, hepatic vein)
- Confusing the liver’s position (mainly on the right, but crosses midline to the left)
Real-World Applications
The concept of liver diagram is used in fields like medicine, medical imaging, and surgery. Understanding its structure helps doctors detect diseases (like hepatitis or cirrhosis), plan surgeries, and explain treatments. Students who master diagram-based questions with Vedantu gain clarity not only in exams, but also for future careers in health sciences and biotechnology.
In this article, we explored liver diagram, its key structures, drawing tips, main functions, and practice points for exam revision. To learn more about the anatomy and role of the liver, or to strengthen your biology concepts, refer to Liver and Human Digestive System on Vedantu for further reading and practice.
- Liver – Detailed structure and functions
- Human Digestive System – Connection of liver in digestion
- Bile – Importance in fat digestion
- Rectum – Relation to abdominal organ layout
- Kidneys – Comparative positioning to liver
- Digestive System Diagram – Integrated diagram practice
- Human Body Anatomy – Full map of organ positions
- Peristalsis – Liver’s role in digestive movement
- Human Excretory System – Excretory functions of liver
FAQs on Liver Diagram with Labeled and Unlabeled Images for Students
1. What is a liver diagram?
A liver diagram is a visual representation showing the shape, position, and main parts of the liver within the human body. It helps students understand the liver’s anatomy by illustrating important features such as lobes, blood vessels, and its relation to other organs, which is crucial for CBSE exams and practical revision.
2. How do I label the main parts of the liver diagram?
To label the main parts of the liver diagram, identify key structures such as the right lobe, left lobe, caudate lobe, quadrate lobe, hepatic artery, portal vein, hepatic veins, gallbladder, and the ligaments (like the falciform ligament). Use clear, concise labels and relate them to their anatomical position for accurate exam diagrams. Practice with both labeled and unlabeled diagrams for better retention.
3. On which side of the body is the liver located?
The liver is located predominantly on the right side of the upper abdomen, just below the diaphragm. The majority of the liver lies within the right hypochondriac region but it also extends slightly into the epigastric and left hypochondriac regions. This location is important for accurate diagram labels and understanding organ relationships.
4. What are the functions shown in a liver diagram?
A liver diagram may highlight several key functions such as bile production, detoxification, metabolism of nutrients, storage of glycogen, synthesis of plasma proteins, blood filtration, and immune support. Some diagrams include summarized function lists to aid quick revision for exams, outlining the most important 7 to 10 functions that are commonly asked.
5. How to draw an easy liver diagram for exams?
To draw an easy liver diagram for exams, follow these simple steps: start with a wedge-shaped outline tilted slightly to the right, then add two main lobes divided by the falciform ligament. Include the gallbladder beneath the right lobe and mark key blood vessels like the portal vein, hepatic artery, and hepatic veins. Use labels sparingly but clearly and practice multiple times for precision under exam conditions.
6. What's the difference between labeled and unlabeled liver diagrams?
A labeled liver diagram includes clear text or numbers identifying each part (e.g., lobes, vessels, ligaments), which helps in memorization and exam accuracy. An unlabeled diagram presents only the liver’s shape and structure without text, useful for drawing practice and testing students’ ability to recall and mark parts independently.
7. Why does the liver diagram often confuse students with the stomach’s location?
Students often confuse the liver with the stomach’s location because both organs lie close to each other in the upper abdomen, but the liver is mostly on the right side and the stomach lies more on the left. Clear labeling and diagrams showing the liver relative to the stomach and ribs help reduce this confusion in exams.
8. Why are rib details important in the posterior view of a liver diagram?
Including rib details in the posterior liver diagram shows the liver’s protection by the ribcage and helps students understand its anatomical position beneath the ribs. This aids in accurate organ localization and answers exam questions related to organ protection and placement inside the thoracoabdominal cavity.
9. Why do some exam questions require both labeled and blank liver diagrams?
Exams require both labeled and blank liver diagrams to test different skills: labeled diagrams assess recognition and memorization of parts, while blank diagrams evaluate a student’s ability to recall and correctly label from memory. Practicing both types is important for comprehensive preparation.
10. Why are blood vessel labels commonly missed in liver diagrams?
Students often miss labeling blood vessels like the portal vein, hepatic artery, and hepatic veins due to their complex branching and similar appearance. Focusing on key vessel paths and their anatomical landmarks during practice helps to accurately include them in diagrams, which is crucial for full exam marks.
11. Why does the number of liver lobes shown vary across books?
The number of liver lobes shown varies because some texts focus on the anatomical lobes (right, left, caudate, quadrate) while others emphasize a surgical or segmental division into smaller sectors or segments (Couinaud classification). Understanding both perspectives is helpful for exams and advanced biology studies.
12. Why is a simple liver drawing preferred for quick revision?
A simple liver drawing reduces clutter and focuses on the basic shape and main parts, making it easier for students to quickly recall and revise key components. It is especially useful for mobile revision and last-minute board exam prep, where complicated images may cause confusion.
