Labelled Diagram Of Human Ear for NEET Biology

The labelled diagram of the human ear is a crucial topic in NEET Biology because it helps students understand the structure and functioning of one of the major sensory organs. A clear grasp of this diagram not only builds strong fundamentals for questions related to human physiology but also makes complex topics like hearing, sound transmission, and balance easier to learn. Understanding each labelled part, its role, and its connections will boost conceptual clarity and support effective problem-solving in the NEET exam.

What is the Labelled Diagram of Human Ear?

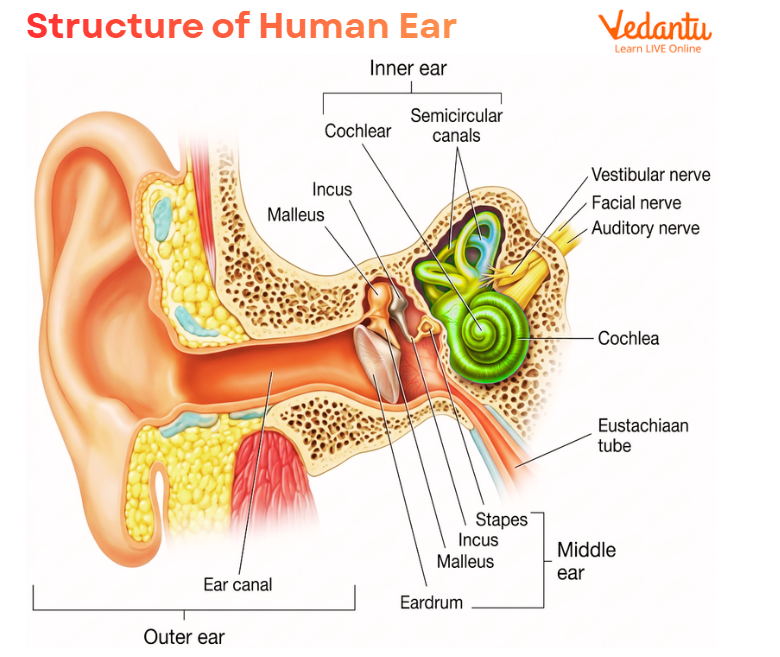

The labelled diagram of human ear is a scientific illustration showing all major parts of the ear with appropriate names or labels. For NEET, being familiar with this diagram is essential as it visually represents the anatomy of the ear, which is one of the five primary sense organs in humans. The human ear is divided into three main sections - external ear, middle ear, and internal ear. Each section contains different structures critical for hearing and balance. The diagram brings all these components together in one image to show how they work as a system.

Core Ideas and Fundamentals of Human Ear Diagram

To truly understand the labelled diagram of the human ear, you must know the structure, components, and their main functions. The ear is more than just the organ for hearing - it also plays a vital role in maintaining balance. Each segment of the ear has specialised parts that cooperate seamlessly for proper functioning.

Main Sections of the Ear

• External Ear: Includes the pinna (auricle) and external auditory canal, which collect and direct sound waves inward.
• Middle Ear: Contains the tympanic membrane (eardrum) and three tiny bones called ossicles (malleus, incus, stapes) that amplify sound vibrations.
• Internal Ear (Inner Ear): Comprises the cochlea (responsible for hearing), vestibule, and semicircular canals (both involved in maintaining balance).

Detailed Components Found in the Labelled Diagram

• Pinna: The visible, outer part that collects sound.
• External Auditory Canal: Channel directing sound to the eardrum.
• Tympanic Membrane: Vibrates in response to sound waves.
• Ossicles (Malleus, Incus, Stapes): Amplify and transmit vibrations to the inner ear.
• Eustachian Tube: Equalises air pressure between middle ear and atmosphere.
• Cochlea: Spiral-shaped organ that converts vibrations into nerve impulses.
• Vestibule and Semicircular Canals: Regulate balance and spatial orientation.
• Auditory Nerve: Carries electrical signals from cochlea to brain.

Important Sub-Concepts Linked to Human Ear Diagram

Mechanism of Hearing

The labelled diagram helps map out the journey of a sound wave from the environment to the brain. Sound waves are gathered by the pinna, travel through the external auditory canal, make the tympanic membrane vibrate, move through the ossicles, reach the cochlea, and finally convert into nerve impulses that reach the brain via the auditory nerve.

Balance and Equilibrium

The inner ear structures such as the vestibule and semicircular canals, visible in labelled diagrams, help maintain the body's balance. They detect changes in head position and motion, sending signals to the brain so you can stay upright and coordinated.

Role of Eustachian Tube

The Eustachian tube is often labelled in diagrams to highlight its role in equalising ear pressure, a key concept when learning why ears can "pop" or why infections affect hearing.

Key Principles and Relationships Illustrated in the Diagram

The human ear diagram does not directly involve formulas, but it does illustrate important relationships:

• Direct connection and sequential workflow - Sound vibrations move in a clear sequence through each labelled part, showing how they depend on one another for hearing.
• Functional relationships - The middle ear ossicles greatly amplify sound, whereas the inner ear translates physical movement into neural signals for perception.
• Dual role - The inner ear serves both hearing and balance, which is visually clear in the labelled diagram.

Features of the Human Ear Diagram

• Clearly labeled anatomical parts make identification in MCQs straightforward.
• Shows the spatial arrangement and relationships among different ear structures.
• Helps visualize functional pathways such as sound transmission and equilibrium management.
• Makes abstract concepts easier by connecting words to pictures.

Importance of the Human Ear Diagram for NEET

Questions about the labelled diagram of human ear frequently appear in NEET due to their fundamental importance in human physiology. Proper understanding enables students to answer questions related to hearing mechanisms, balance, and disorders of the ear confidently. Additionally, mastering this diagram supports the study of broader chapters such as Neural Control and Coordination and Special Senses, linking together knowledge across human anatomy and physiology.

How to Study the Labelled Human Ear Diagram Effectively for NEET

1. Start by examining a clear, labelled diagram and identifying each part visually and by name.
2. Relate every component to its specific function in hearing or balance.
3. Practice drawing and labelling the diagram from memory - this is a powerful revision tool.
4. Solve previous NEET MCQs that involve ear structure, function, and mechanisms.
5. Use mnemonics for remembering the order of ossicles and main structures.
6. Go through short summaries or flashcards for last-minute revision.
7. Self-test frequently by masking labels and trying to recall each part and its role.

Common Mistakes Students Make in This Concept

• Mislabeling structures, especially confusing the order of ossicles or internal ear components.
• Confusing the functions of vestibule, semicircular canals, and cochlea.
• Skipping over the significance of the Eustachian tube in maintaining pressure balance.
• Overlooking the dual role of the inner ear (hearing and balance).
• Neglecting to practice diagram-based questions and accurate spellings.

Quick Revision Points for Human Ear Diagram

• Human ear has three main parts: external, middle, and internal ear.
• Ossicles (malleus, incus, stapes) are the three middle ear bones - always remember their order.
• Cochlea is for hearing, vestibule and semicircular canals are for balance.
• Eustachian tube equalises pressure; helps prevent ear damage.
• Sound conduction path: pinna - auditory canal - tympanic membrane - ossicles - cochlea - auditory nerve.
• Practice labelling the diagram and associating every structure with its function.
• Review image-based NEET questions regularly for retention.
