Retina: Structure, Layers, Functions, Diagram and Retina Problems for NEET

The retina is the light-sensitive inner layer of the eye that plays a central role in vision. It is located at the back of the eyeball and works as the part of the eye that receives light and converts it into nerve signals. These nerve signals then travel to the brain through the optic nerve, where they are interpreted as images. In simple words, if the eye captures light, the retina helps turn that light into meaningful vision.

Also Check: Structure of Human Eye

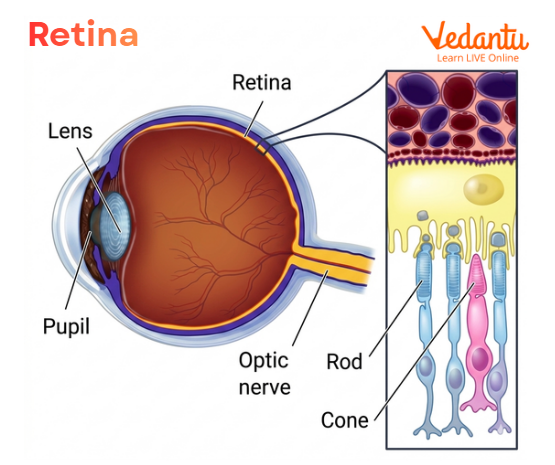

Retina Eye Location

The retina is present at the back of the eye, behind the iris and lens. When light enters the eye and is focused correctly, the rays converge on the retina. This precise focusing is important because the retina must receive a clear image for proper vision.

So, in simple terms:

• cornea allows light to enter

• lens helps focus it

• retina receives that focused light

• optic nerve carries the message to the brain

Structure of Retina

The structure of the retina is highly organised and is made of different types of nerve cells arranged in layers. It is not a single flat sheet of identical cells. Instead, it contains photoreceptors, supporting cells, and neural cells that work together to process visual information.

At a basic level, the retina contains:

• photoreceptor cells

• bipolar cells

• ganglion cells

• nerve fibre layer

• supporting and pigment cells

The retina is adapted to detect light and begin the process of converting it into a nerve impulse. This conversion is called phototransduction. The arrangement of retinal cells allows light detection, signal processing, and onward transmission to the brain.

Parts of the Retina

The retina has two major functional regions:

1. Macula

The macula is the central part of the retina that is responsible for sharp central vision. It is especially important for seeing colours and fine details. This helps us perform activities such as:

• reading

• recognising faces

• driving

• seeing fine patterns and small objects

The cones are concentrated in the macular region, which is why this area is associated with detailed and colour vision.

2. Peripheral Retina

The peripheral retina helps us see objects to the side while looking straight ahead. It is more important for side vision and for seeing in dim light. Rod cells are more important in this region. These rods help detect movement and function well under low-light conditions.

This is why damage to the peripheral retina may cause narrowing of vision or tunnel vision.

Function of Retina

The main function of the retina is to detect light and convert it into nerve signals. These signals are then sent to the brain, where they are interpreted into meaningful visual images.

Detailed Functions of Retina

1. Light Detection

The retina contains photoreceptor cells that react to light. These cells absorb light and initiate a neural response.

2. Conversion of Light Into Nerve Signals

This is the central physiological role of the retina. Light energy is changed into electrical impulses through photoreceptor activity.

3. Transmission to the Brain

The signals generated in the retina are carried through the optic nerve to the visual areas of the brain.

4. Central and Peripheral Vision

The retina helps in both central detailed vision and peripheral side vision, depending on the region involved.

5. Colour Vision and Low-Light Vision

Different photoreceptors in the retina support different visual tasks. Cones are mainly for colour and detail, while rods are mainly for dim light and peripheral vision.

This is why retinal damage can create different kinds of visual loss depending on which retinal area is affected. Some people may lose central vision, some may lose side vision, and some may develop blind spots.

Photoreceptors in the Retina

Photoreceptors are the light-sensitive cells of the retina. They are essential for converting light into visual signals.

There are two main types of photoreceptors:

Rods

Rods are more sensitive to dim light. They help in:

• night vision

• peripheral vision

• motion detection

Rods do not help much in colour vision.

Cones

Cones function best in bright light. They help in:

• colour vision

• sharp central vision

• fine detail recognition

The cones are highly concentrated in the macula. This is why the macula is so important for reading and recognising faces.

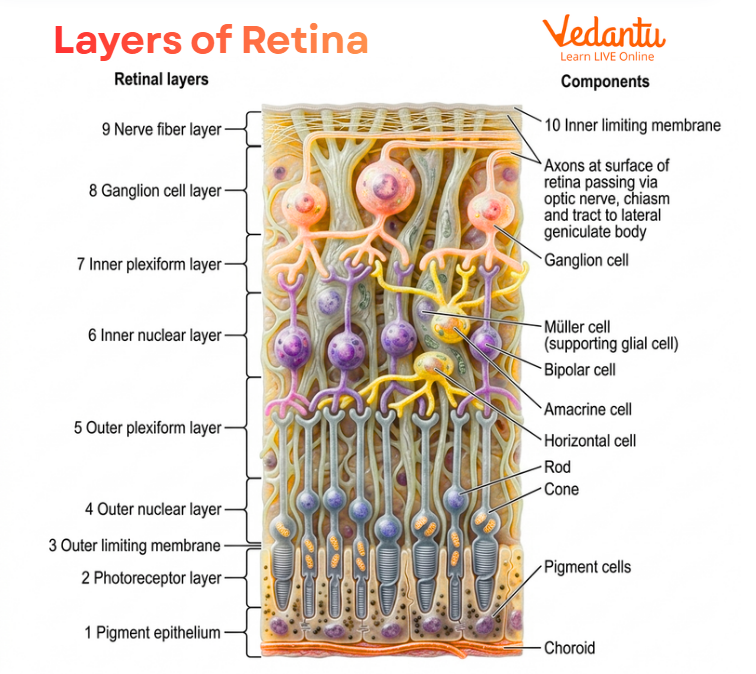

Layers of Retina

The layers of the retina are an important part of eye anatomy. The retina is made of several distinct layers of cells and fibres arranged in a specific order. These layers help receive light, process visual signals, and pass them to the optic nerve.

1. Retinal pigment epithelium

2. Layer of rods and cones

3. External limiting membrane

4. Outer nuclear layer

5. Outer plexiform layer

6. Inner nuclear layer

7. Inner plexiform layer

8. Ganglion cell layer

9. Nerve fibre layer

10. Internal limiting membrane

1. Retinal Pigment Epithelium

This is the outermost retinal layer. It supports photoreceptors and helps absorb excess light, preventing internal reflection.

2. Layer of Rods and Cones

This contains the outer and inner segments of photoreceptor cells. It is the actual light-detecting layer.

3. External Limiting Membrane

This is a thin boundary-like layer separating photoreceptor segments from their nuclei.

4. Outer Nuclear Layer

This contains the nuclei of rods and cones.

5. Outer Plexiform Layer

This is the region where photoreceptors form synapses with bipolar and horizontal cells.

6. Inner Nuclear Layer

This layer contains the nuclei of bipolar cells, horizontal cells, amacrine cells, and Müller supporting cells.

7. Inner Plexiform Layer

This is where bipolar cells connect with ganglion cells and other interneurons.

8. Ganglion Cell Layer

This contains the cell bodies of ganglion cells.

9. Nerve Fibre Layer

This consists of the axons of ganglion cells, which converge to form the optic nerve.

10. Internal Limiting Membrane

This is the innermost retinal layer facing the vitreous humour.

Retina Problems and Diseases

Many retina problems can affect vision seriously. Since the retina is responsible for converting light into nerve signals, damage to it can produce permanent vision loss if not treated in time.

Common retina problems include:

• age-related macular degeneration

• diabetes-related retinopathy

• hypertensive retinopathy

• macular hole

• macular pucker

• ocular migraine

• posterior vitreous detachment

• retinal bleeding

• retinal detachment

• retinal tears

• retinal vein occlusion

• retinal artery occlusion

• retinal inflammation or uveitis

• retinitis pigmentosa

• retinopathy of prematurity

• solar retinopathy

• eye cancers such as retinoblastoma

• colour blindness including achromatopsia

Symptoms of Retina Problems

If the retina is damaged or diseased, a person may develop noticeable visual symptoms. Common signs of retina problems include:

• blurry vision

• distorted vision

• peripheral vision loss or tunnel vision

• double vision

• flashes of light

• floaters

• light sensitivity

• blind spots

• worsening vision over time

Sudden changes in vision are especially serious and should not be ignored because some retinal conditions can progress rapidly and lead to irreversible blindness if not treated promptly.

Tests Used to Examine the Retina

An eye specialist checks the retina during a complete eye examination. To see the retina clearly, the pupil is often dilated.

Important retinal examination methods include:

1. Fundoscopy or Ophthalmoscopy

This helps directly examine the inside of the eye, including the retina.

2. Slit Lamp Examination

This gives a magnified view of the eye and can be used along with special lenses to study retinal structures.

3. Fundus Photography

This provides retinal images for documentation and comparison.

4. Red Reflex or Fundus Reflex Testing

This helps detect abnormalities in the eye.

5. Visual Acuity Testing

This measures how clearly a person can see.

6. Visual Field Testing

This checks central and peripheral vision.

These tests are especially important in people with diabetes, hypertension, or progressive visual symptoms.

Retina Care and Prevention

Protecting the retina is very important for preserving vision. Good retinal care includes both routine eye examination and daily precautions.

• get regular eye examinations every one to two years

• if you have diabetes or other chronic conditions, get eye checks at least once a year

• maintain a healthy body weight

• focus on proper nutrition

• wear protective eyewear during sports or risky activities

• use sun protection such as good quality sunglasses

• avoid exposure to extremely bright light sources

• do not ignore even gradual vision changes

Prompt medical care is very important if sudden vision loss or sudden flashes, floaters, or blind spots appear.

Why the Retina is Important in Vision?

The retina is important because it is the structure that begins the entire process of vision. Without the retina, incoming light would not be converted into neural information. Even if the cornea and lens worked perfectly, vision would still not occur without a functioning retina.

Why the retina matters so much:

• it detects light

• it distinguishes colour and brightness

• it supports central and peripheral vision

• it starts the transmission of visual messages

• it connects the eye to the brain through the optic nerve

This is why the retina is often called the sensory screen of the eye, though in reality it does far more than a simple screen.
